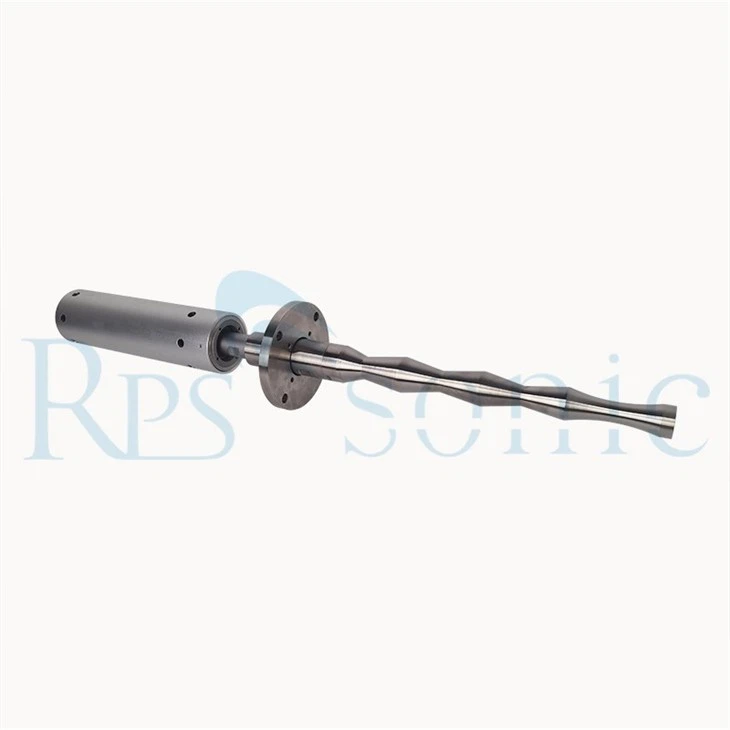

Ultrasonic Probe Dreifingarbúnaður
A typical hybrid technology uses a drive mechanism (usually an electric, hydraulic or pneumatic motor) to rotate a shaft with one or more impellers.An ultrasonic homogenizer (or "ultrasonic stirrer") involves inserting the tool head into the sample.
Nánari upplýsingar
Lýsing:
Dæmigerð blendingstækni notar drifbúnað (venjulega raf-, vökva- eða loftmótor) til að snúa öxul með einu eða fleiri hjólum.
An ultrasonic homogenizer (or "ultrasonic stirrer") involves inserting the tool head into the sample. The tool head vibrates rapidly, thereby transferring its ultrasonic energy to the sample. Unlike energy diffusion, the particles around the tool head will be impacted by a large amount of energy. Air bubbles form and collapse in the surrounding solution, generating shear waves and shock waves. The high local strength of the tool head means that the ultrasonic treatment process is more effective than in an ultrasonic water bath. This makes the ultrasonic homogenizer an ideal choice for reducing particle size and cell disruption. A small particle size can be achieved through a short processing time. Applications include disrupting suspended cells, emulsifying and dispersing nanoparticles.
Færibreyta:
Líkan/Gögn | Sono-20-1000 | Sono-20-2000 | Sono-20-3000 | Sono-15-3000 |
Tíðni | 20±0.5 KHz | 20±0.5 KHz | 20±0.5 KHz | 15±0.5 KHz |
Kraftur | 1000W | 2000W | 3000W | 3000W |
Spenna | 110/220V | |||
Hitastig | 300 gráður | |||
Þrýstingur | 35 MPa | |||
Styrkur hljóðs | 20 W/cm² | 40 W/cm² | 60 W/cm² | 60 W/cm² |
Hámarksgeta | 10 l/mín | 15 l/mín | 20 l/mín | 20 l/mín |
Horn efni | Títan | |||
Umsókn:
Dæmigert forrit ultrasonic sonochemistry eru ultrasonic einsleitni, phacoemulsification, ultrasonic dreifing, affjölliðun og blaut mala (kornastærðar minnkun), frumu truflun og sundrun, útdráttur, afgasun, og sonochemical ferli;
Ultrasonic dispersion does not require the use of emulsifiers. In many cases, the diameter of the dispersed particles can reach 1μm or less. It can be carried out between solid, liquid, and gas phases of the same substance, or between different solids, liquids and gases. It has been widely used in food sample detection and analysis, preparation of nanomaterials, etc.
Svona eins og:
● Paint, titanium oxide, iron oxide, carbon, etc. are dispersed in water or solvent.
● Graphene micronization
● Dispersion of fluorescent materials
● Dispersion of photosensitive materials
● Dispersion of dyes in molten paraffin
Sp.: Hversu margar mismunandi tegundir af vörum framleiðir fyrirtækið þitt?
A: Nú höfum við meira en 100 vörur. Við höfum mikinn kost á OEM, við getum veitt tækniþjónustu, hönnunarþjónustu og sérsniðið þjónustu.
Sp.: Hvenær get ég fengið verðið?
A: Venjulega vitnum við innan 8 klukkustunda eftir að við fáum fyrirspurn þína. vinsamlegast sendu tölvupóst á admin@rps-sonic.com ef þú vilt fá verð frá okkur.
Q: What's your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.
